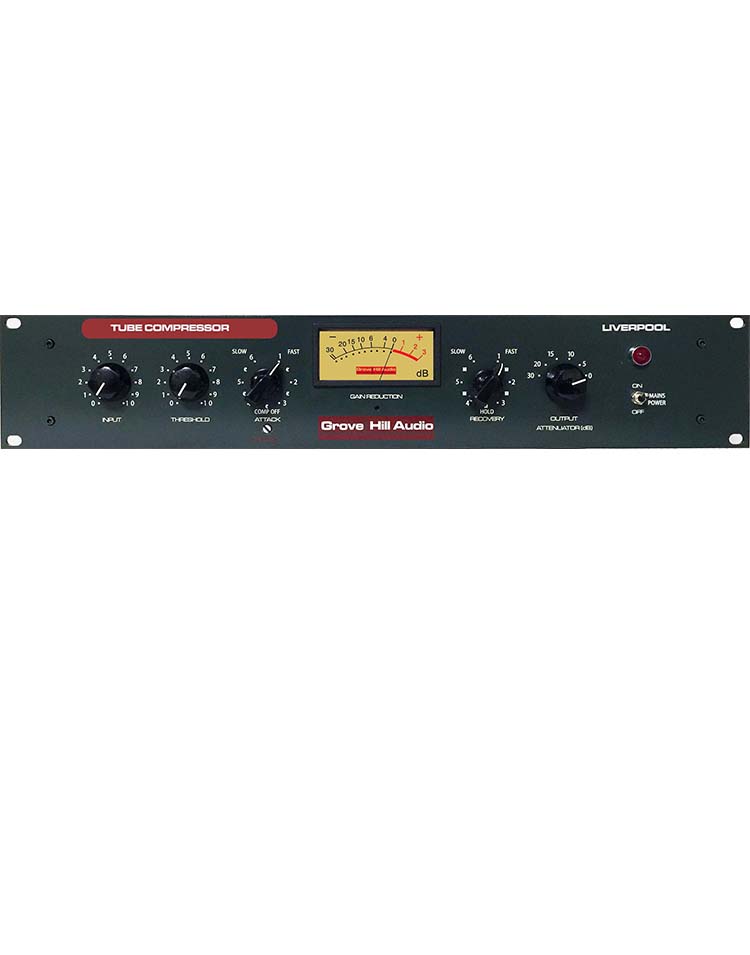

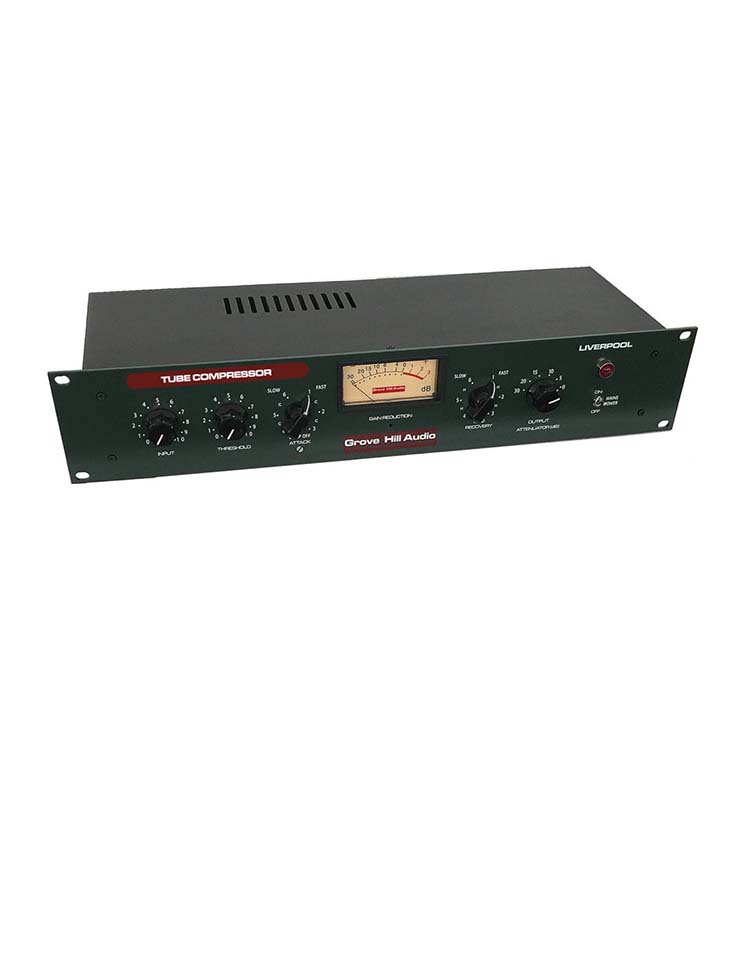

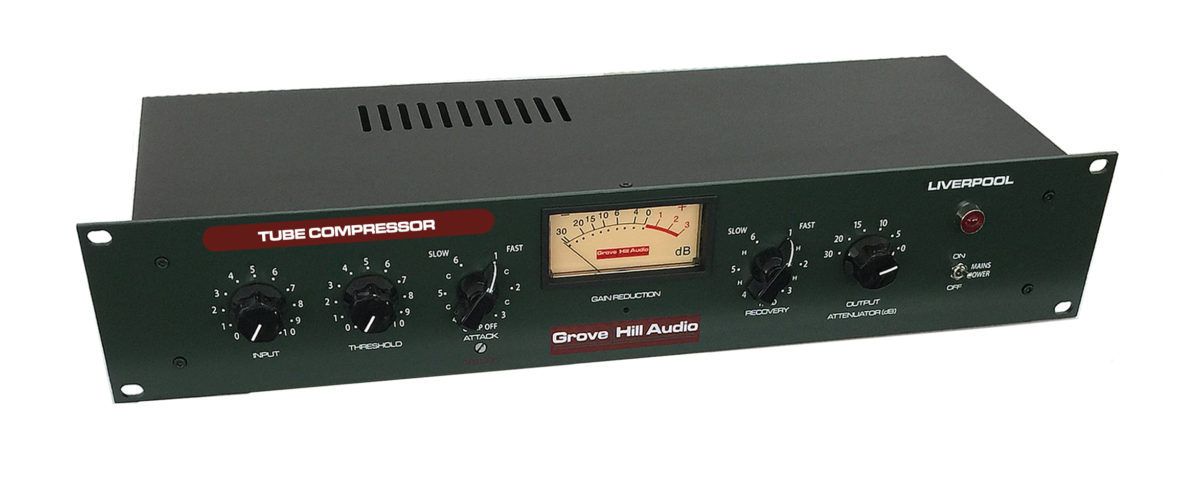

The LIVERPOOL Tube Compressor inspires creativity and has a sound reminiscent of world famous Mu compressors used at major Studios. It is a modern design born from an original American Mu tube compressor modified by engineers in the 1960’s. The Liverpool incorporates large custom wound transformers, new old stock tubes and high quality components throughout the audio path. The Liverpool Compressor is a combination of art and function.
Type: Tube compressor, 2U rack mount design
Frequency Response: +/- 1.5dB, 10 Hz to 40,000Hz
Power Output: +20 dBu
Total Harmonic Distortion: 0.08% at 1 KHz with output at 0dB
Noise Level: 82 dBu below rated output
Source Impedance: Any up to 15,000 Ohms
Load Impedance: 600 Ohms
Attenuation: 30 dB in 5 dB steps – Constant impedance.
Maximum Compression: 30dB
Attack Times (msec): 3*, 19*, 48*, 77*, 109*, 138*.
Recovery Times (*msec): 127*, 447*, 917*, 1.9 sec., 3.4 sec., 6 sec.
Threshold: 0dBm to +16dBm Output
Compression Ratios: 2:1 at 0dBm Threshold, 4:1 at +16dBm Threshold
Tube Complement: 6BC8/6BZ8, 6CG7, 6AL5
Circuit Design: Variable transconductance compression circuit utilizing a medium Mu, semi-remote cutoff twin tri
